Honeycomb Sheet Shape Filter for Ozone catalyst AOD-FW(Activated carbon fiber)
Honeycomb Sheet Shape Filter for Ozone catalyst AOD-FW(Activated carbon fiber)
Honeycomb Sheet Shape Filter for Ozone catalyst AOD-FW(Activated carbon fiber)
Honeycomb Sheet Shape Filter for Ozone catalyst AOD-FW(Activated carbon fiber)
Honeycomb Sheet Shape Filter for Ozone catalyst AOD-FW(Activated carbon fiber)
Honeycomb Sheet Shape Filter for Ozone catalyst AOD-FW(Activated carbon fiber)
Honeycomb Sheet Shape Filter for Ozone catalyst AOD-FW(Activated carbon fiber)
Honeycomb Sheet Shape Filter for Ozone catalyst AOD-FW(Activated carbon fiber)
AMBOHR

Honeycomb Sheet Shape Filter for Ozone catalyst AOD-FW(Activated carbon fiber)

Regular price $126.30 Sale price $139.60 Unit price per
                           Catalyst that effectively resolves ozone

Description

Features Applications
  • Under the same working conditions, the decomposition rate of ozone with the same quality catalyst is higher and more stable than that of the same kind of products
  • Ozone removal process without the need to provide any additional chemicals
  • High efficient catalytic decomposition of ozone at room temperature to produce oxygen to meet the requirements of safety and economy
  • The material is simple and convenient to use, has long service life, and the purification efficiency of other catalysts is more than 1.2-2 times under the same quality
  • Use Less, perform better, and be more economical with the same volume
  • For the first time ozone elimination and efficient utilization of resources
  • Composite multi-catalyst system, high ozone utilization rate, high mineralization rate
  • The invention solves the problem of ozone secondary pollution caused by photolysis and plasma technology, improves the oxidation degree and purification efficiency, and upgrades the traditional technology

Method of use:

Ozone and exhaust gas into the catalyst surface at the same time, gas pipeline not short flow air leakage, all the gas through the catalytic network, the number of 2-4 layers.

Applications
  • Industrial VOCs, Odors, Lampblack and other pollutants purification process of ozone by-products of equipment and engineering; UV photolysis, plasma, high-voltage static electricity, ozone generator and other equipment
  • Plastic recycling, spraying, printing, electronic manufacturing, paint and other industries waste gas purification and garbage in the loading station and other odorous places
  • The efficient elimination and utilization of ozone in many fields such as the place where the VOCs Waste Gas with low concentration is produced
  • The ozonation catalyst is designed and developed for the purification of high concentration ozone pollution (especially O3≥500 ppm) , and is also safe and effective for the purification of low concentration ozone (O3 < 500 ppm) , fast catalytic decomposition of ozone to non-toxic oxygen.
  • ozone generator generated residual ozone (high, medium and low concentrations of ozone) in all occasions
  • Treatment of ozone tail gas from L Ozonation of wastewater
  • high efficient elimination and utilization of ozone in many fields, such as sterilization and disinfection of medical instruments, ozone pollution purification after odor elimination in public places
Volume calculation:

         catalyst volume=air volume/air speed

         weight= catalyst volume* bulk density

Practical case:

blast capacity

Ozone concentration

Air temperature

humidity

Volume airspeeed selection

5000m3/h

20ppm

20-30

30-60RH

20000h-1

catalyst volume=5000m3/h/20000h-1=0.25m3

catalyst dosage=0.25m3*500kg/m3=125kg

Specification & Packaging

Specifications:

Type and name of catalyst

AOD-FW (ozone decomposition catalytic network)

Catalytic action

Catalytic decomposition of ozone to oxygen at room temperature with zero energy consumption

Catalyst appearance

Sheet honeycomb shape, thickness between 10-50 mm, length and width up to 1000 mm * 2000 mm

Catalyst carrier

Activated carbon fiber

Packing density and aperture

50-60kg/m3, 18-40ppi

Product packaging

Can be customized according to user needs, does not contain metal border

specific surface area

≥500m2/g

Ozone purification efficiency

≥80-95% (related to actual working condition)

Quality Assurance

Service life not less than 8760h

Active component

Supported manganese-based composite metal oxide

Recommend airspeed

10000-50000h-1

Suggested reaction flow rate

≤3m/s

Air Resistance for catalyst use

≤800pa -LRB-relative to actual working condition)

Suggested gas residence time

0.08-0.36s

Installation requirements and points for attention

Gas pipeline not short flow leakage, all the gas through the catalytic network, the number of 2-4 layers

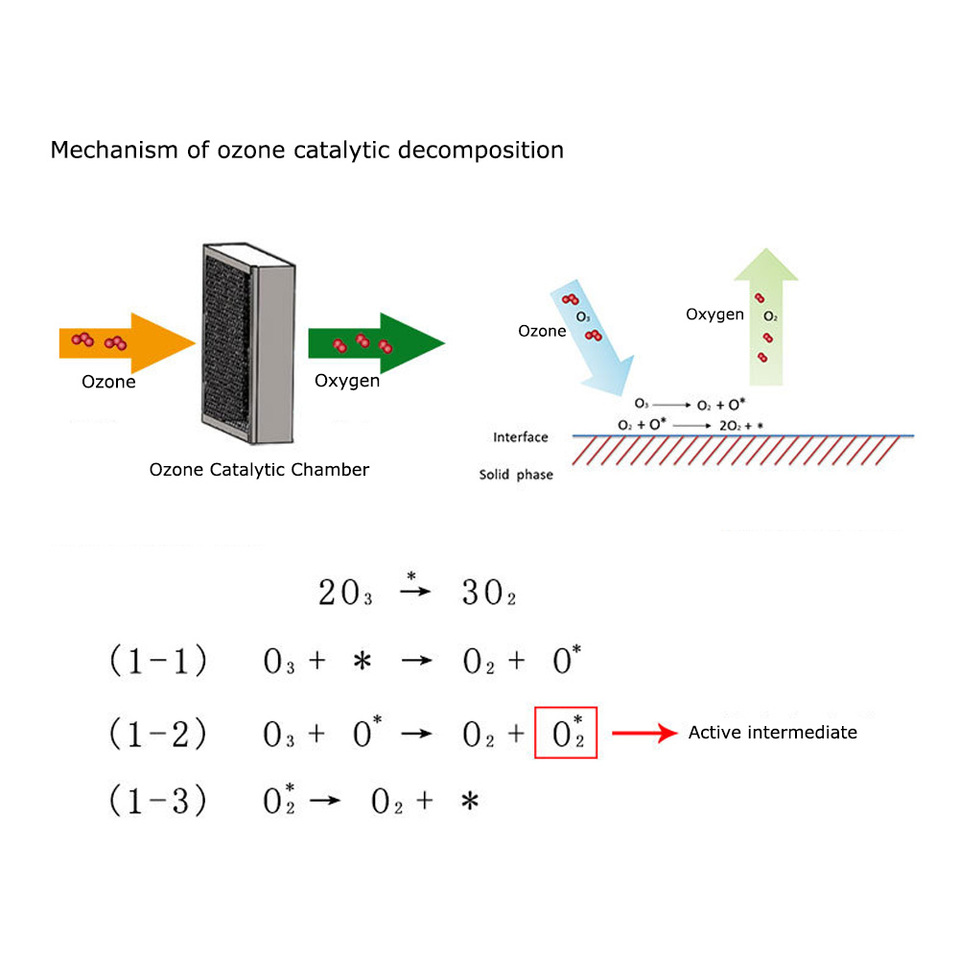

Product principle

Under the action of power system, ozone is decomposed into non-toxic oxygen after entering the nano-active sites on the inner and outer surfaces of ozone decomposed materials with high specific surface area at room temperature through ozone catalytic decomposition material bed or decomposition network, purification process zero energy consumption (excluding the power consumption of fans),zero chemicals.
