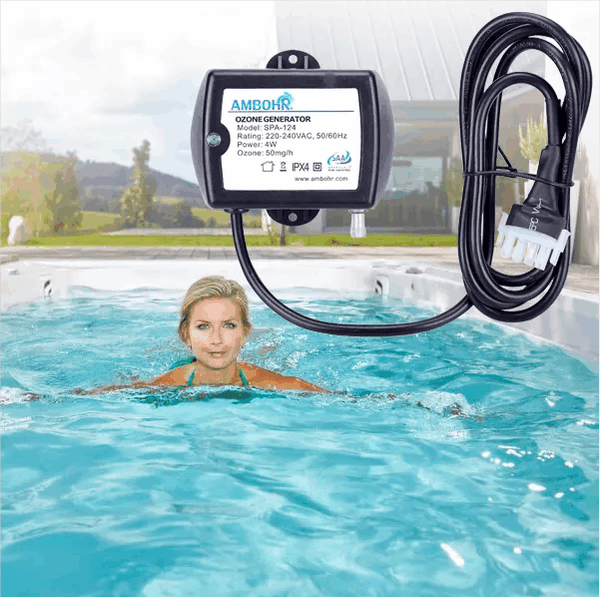

Small Ozone Generator SPA-124 and Venturi for Cold plunge Bathtub and Swimming Pool  ( With Check Valve+PVC hose+Venturi )
Small Ozone Generator SPA-124 and Venturi for Cold plunge Bathtub and Swimming Pool  ( With Check Valve+PVC hose+Venturi )
Small Ozone Generator SPA-124 and Venturi for Cold plunge Bathtub and Swimming Pool  ( With Check Valve+PVC hose+Venturi )
Small Ozone Generator SPA-124 and Venturi for Cold plunge Bathtub and Swimming Pool  ( With Check Valve+PVC hose+Venturi )
Small Ozone Generator SPA-124 and Venturi for Cold plunge Bathtub and Swimming Pool  ( With Check Valve+PVC hose+Venturi )
Small Ozone Generator SPA-124 and Venturi for Cold plunge Bathtub and Swimming Pool  ( With Check Valve+PVC hose+Venturi )
AMBOHR

Small Ozone Generator SPA-124 and Venturi for Cold plunge Bathtub and Swimming Pool ( With Check Valve+PVC hose+Venturi )

Regular price $98.89 Sale price $127.89 Unit price per

Ozone Generator Description

Venturi Functions & Features.

  • No moving parts
  • Durable PVDF construction
  • Completely ozone compatible
  • Check valve included in injection port
  • Quick installation
  • very high ozone mass transfer rate
  • requires water pump to initiate suction
  • efficiency rarely decreases over time

Ozone Generator Functions & Features.

  • SPA-124 produces powerful oxidant.
  • SPA-124 disinfects water & air by killing viruses and biological contaminants.
  • SPA-124 reduces the use of chemical levels which means it saves you money.
  • Designed & tested specially for Water and Air.
  • Available in DC12V-AC220V-AC110V; 4W
  • Small and compact unit 110*75*35mm
  • CE, & CQC  certified.

Specifications of Ozone Generator:

    Ozone Output: 50-100mg/hr @ air

    External gas source : 1-3L/min@air

    Ozone Generating Method: Corona Discharge

    Electrical:  DC12V-AC220V-AC110V; 4W

    Outlet Connection: Φ6mm Pagoda Joint

    Case: Flame retardant plastics

    Accessories: Hose+Air Stone(optional)

    Dimension(L*W*H): 4.3”*3”*1.4”(110*75*35 mm)

    Installation Dim: 3.2”(82 mm)

    Weight: 0.4kg

    Specifications of Venturi

      Inlet & Outlet (Nominal Pipe Size) Male NPT: 3/4-in

      Suction Port Barb (Inner Diameter): 0.3-in Barb"

      Suction Port Thread (Nominal Pipe Size): 1/4-in NPT

      Length: 149mm (5.9")

      Supply Water: Temp.0-60℃, PH Value: 5-11

      Power of the water pump (Reference): 0.55kW

      Water yield: 3000L/h (50.1L/min 0.84L/s)

      Material: PVDF body, Teflon ball, Kel-F seat

      Weight: 0.14lb (0.063kg)



      Product Application

                                HEALTH IS OUR COMMON NEED

      Every one of us needs clean water, pure air and non-toxic food, because only in this way can we live healthily and happily.
